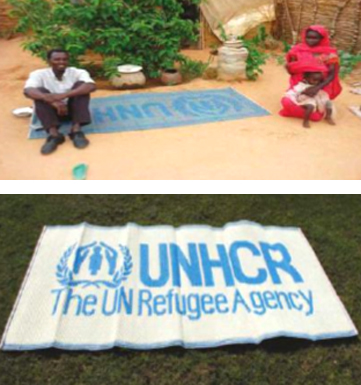

| Synthetic Sleeping Mat |
|
|
| General Information and Description |
|
| Synthetic sleeping mats are used to sleep on and must be waterproof, tear proof and material trim finished. |
| |
| Technical Specification |
The mats should be made from 100% synthetic yams from virgin raw materials. Synthetic sleeping mats must not contain llers like calcium carbonate or any other type the use of recycled materials is not allowed.
The synthetic yarns in a tightly woven 2/2 twill structure using a mono lament or multi lament warp (PP tubes without llers minimum 1000 tubes per meter length )and thick tape pp or polyester yarn In weft the two short sides to be seared with a rst stitch folded hem of the maL plus one bias 40mm binding tape minimun 10g/m with stitches through the fabric of the mat. OR with a double folded stitched hem. Four sides trim finished.
Sleeping mat area:1.62 m2
Weighl.0.500 kg/m2 minimum +-5%.
Color: plain, white or blue.
Bursting Strength:ISO13938: 700 kpa minimum.
tear Strength: the edges of the mat should not be tearable when strongly pulled outside by hand or other similar force.
Sleeping Mat finished size:180 x 90 cm
|
| Packing : |
- Sleeping mats are pecked in polypropylene protective bales of 25 pieces rmly secured with 4 strong straps. No individual packing required.However different packing methods may be accepted in order to maximize lodability in pallets and containers.
Weight of packing unit:21.5 kg approx.
Note: It is important that the binding is secure and durable to prevent fraying of the mat mach would result in rapid disintegration of the structure.
|
| Weight and Volume : |
- gross weight per piece: 0.769 to 0.8505 kg approx
- gross weight per bale: 19.2 to 21.5 kg
- Bale size: 92 x 40 x 50 cm
- Volume: 0.184 m3
|
| Optimal Shipping / Container Information : |
- 2200 pieces 22 pallets per 20' DC container (with pallet)
- 4100 pieces, 48 pallets par 40' DC container (with pallet)
- 4800 paces. 48 pallets per 40' HC container (with pallet)
- 8.125 pieces per 40' DC container (without pallets)
- 9.750 pieces per 40' HC container (without pallets)
|
| CRI pallet Details : |
-
Fumigated as per IpSM 15 standard. Dimensions (l x W x H): 1150 x 770 x 144 mm. Maximum height of the packed pallet: 115 cm. pallets should be shrink-wrapped and strapped the palletized goods must not exceed the length and width of the pallet. For further information please refer to section IV pallet Information.
|
| Manufacturer Marking : |
- Event unit should include a tag. stitched in the hem. with the manufacturers Wend cation (letters not higher than 1.5 cm). The tag should include the manufacture's name,uni reference batch number and the date of manufacture. No company ago should be included with the manufacturer's marking.
|
| Expected Life Span : |
- It is expected that sleeping mats will last for 12 months of use under hard tropical conditions.
|
| TAG with UNHCR Logo : |
- UNHCR visibility tag logo must be stitched in the hem.
- size : 20cm
- tag material : Te on
- tag colour : White.
- Typeface (Font) , colour specifications for printing
- Font : Helvetica Bold, Colour specification : pantone Blue 300 or uadrichrome (CMyK). C=100% , M= 45%, Y=0%,K=0%
|
|
|
| |
|
|
|
| |
|
| |
| |
