| Plastic Tarpaulin |
|
|
| General Description |
|

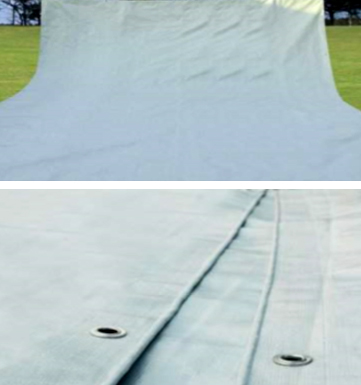

| Reinforced tarpaulin of 4 x 5 m sheet or 4 x 50 in roll designed for long periods of outdoor use In all climates. Plastic tarpaulins can be used as temporary shelter. groundsheets and shelter protection. |
| |
| Technical Specification |
| Finished size for each sheet / roll: 4 x 5 m (+-1%) or 4 x 50 m (+-1%). |
| Material : |
- Made of woven high density black polyethylene (HDPE) fibers, warp x weft, laminated on both sides with low density polyethylene (LDPE) coating.
|
| Sheet Only : |
- With reinforced rims by heat sealing on all sides. (or 2 sides heat sealing and 2 sides double stitching). and a 5 mm diameter polyethylene (PE) or polypropylene (PP) rope on the edge. inside the hem. 1000 denier minimum.
|
| Sheet Only Effective Area : |
|
| Material Weight : |
- Minimum 190 g/m2(+- 20 g/m2).
|
| Tensile Strength : |
- Minimum 600 N both directions of warp and weft (BS 2576, 50 mm grab test or equivalent)
|
| Tear Strength : |
- Minimum 100 N both directions (BS 4303 wing tear or equivalent) or under ISO 4674 (A2).
|
| UV Resistance : |
- Stabilized against ultraviolet rays and excess heat for long outdoor exposure. Maximum 5% loss of original tensile strength under ISO 1421 after 1500 hours ultraviolet (UV) under ASTM G53 / 94 (UVB 313 nm peak).
|
| Welding : |
-
Only one is allowed along the middle of the sheet, length wise. Minimum resistance is 80% of the original tarpaulin tensile strength in the weft under ISO 1421 plus additional procedure.
|
| Sheet Only Reinforcement Eyelets : |
- Provided with aluminum eyelets or equivalent on four sheet sides of the single sheets at 100 cm (+- 5 cm) centre to centre, providing very strong xation points.
|
| Colour : |
- White sun reflactive on both sides. Inner black bars to ensure opacity.
|
| Marking / Logo: |
- Customized to your requirements.
|
| Packing : |
- Pieces per Bale: 5
- Volume per Bale: 62 x 44 x 18 an / 0.05 cbm (approx)
- Weight per Bale: 22.5 kg (approx)
- Weight per Bale: 22.5 kg (approx)
- Bale per Pallet: 20 (100 pieces)
- Weight per Pallet: 420 kg (approx)
- Volume per Pallet: 120 x 80 x 112 cm / 1.08 cbm (approx)
|
| Estimated Shipping/ Container Information |
| With Pallet : |
- 2200 Pieces per 20' GP container
- 4,600 Pieces per 40' GP container
- 4,600 Pieces per 40' HC container
|
| Without Pallet : |
- 3,500 Pieces per 20' GP container
- 5,500 Pieces per 40 GP container
- 5,500 Pieces per 40 HC container
|
|
|
| |
|
|
|
| |
|
| |
| |
