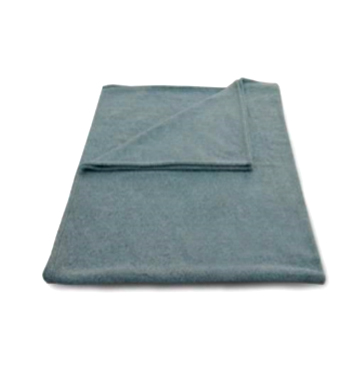

High Thermal Blanket



{Enlarge View.....}









UNHCR / ICRC / IFRC Standard
General Description
A blanket with 4.0 Thermal Resistance of Garments (TOG) is the minimum for indoor use and cold climate. When considering outdoor use of blankets where there is no wind in a 10°C Temperature the TOG requirement is also 4.0

Technical Specification

Material :
  • The high synthetic blankets are made of virgin bees from polyester.
Make :
  • Knitted, dry raised both sides
Content :
  • ISO 1833 on dry weight — 100% virgin polyester
Size :
  • 150x 200 cm (+3% 1-1%). To be taken on at stabilized sample, without folds.
Weight :
  • 500 to 850 g/m2. weight determined by total weight / total surface
Thickness :
  • ISO 5084: 3 mm minimum (1KPa on 2000 mm2)
Tensile Strength :
  • ISO 13934-1: 250N warp and weft minimum
Tensile Strength Loss After Washing :
  • ISO 13934.1 and ISO 6330: Maximum 5% warp and weft after 3 consecutive machine washes at 30°C and one at drying
Shrinkage Maximum :
  • ISO 6330: Maximum 5% warp and weft after 3 consecutive machine washes at 30°C and one at drying
Weight Loss After Washing :
  • Maximum 5% after 3 consecutive machine washes at 30°C and one at drying
Thermal Resistance :
  • ISO 5085-1: TOG 4 (or 0.4 m2 K/W) minimum, rounded to the nearest 0.1. passed on samples picked from compressed bales after 3 consecutive machine washes at 30°C and one at drying
Resistance to Air Flow :
  • ISO 9237 under 100Pa pressure drop: Maximum 1000 L/m2/s
Finish :
  • Whipped seam at 10 mm from the edge with 10 to 13 stitches/10 cm or stitched ribbon or hemmed on 4 sides
Organoleptic Test : No bad smell, not irritating to the skin, no dust. 4 pH 9. Free from harmful VOC (Volatile Organic Components). Fit for human use.
Fire Resistance :
  • ISO 12952 - 1 and 2: Resistance to cigarette. No ignition.
  • ISO 12952 - 3 and 4: Resistance to ame. No ignition
Important Requirement Regarding Laboratory Testing Conditions :
  • Specification under the normal textile test conditioning ISO 139.65% moisture and 20°C for 24 hours
Colour : Grey or other colors upon request
Marking Logo : Customized to your requirements.
Packing : Pieces per Bale: 15
Volume per Bale: 80 x 53 x 50 cm. / 0.212 cbm (approx)
Weight per Bale: 27.5 kg (approx)
Bale per Pallet: 4
Weight per Pallet: 211 kg (approx)
Volume per Pallet: 79 x 53 x 163 cm / 0.68 cbm (approx)
Estimated Shipping 1 Container Information
With Pallets :
  • 40' DC, 46 Pallets, 4 Bales per Pallet, 15 pcs. per Bale, 60 pcs per Pallet, 2.750 PCS / 40' DC.
  • 40' HC, 46 Pallet, 4 Bales per Pallet, 15 pcs per Bale, 60 pcs per Pallet,2.760 PCS / 40' HC.
  • 20' GP, 22 Pallets, 4 Bales per Pallet, 15 PCS per Bale. 60 pcs per Pallet, 1,320 PCS / 20' GP.
Without Pallets :
  • 40' DC. 15 pcs per Bale, 280 Bales 4200 PCS /40' DC
  • 40' HC, 15 pm per Bale. 320 Bales 4,800 PCS /40' HC
  • 20' GP, 15 pcs per Bale, 140 Bales 2100 PCS / 20' GP
